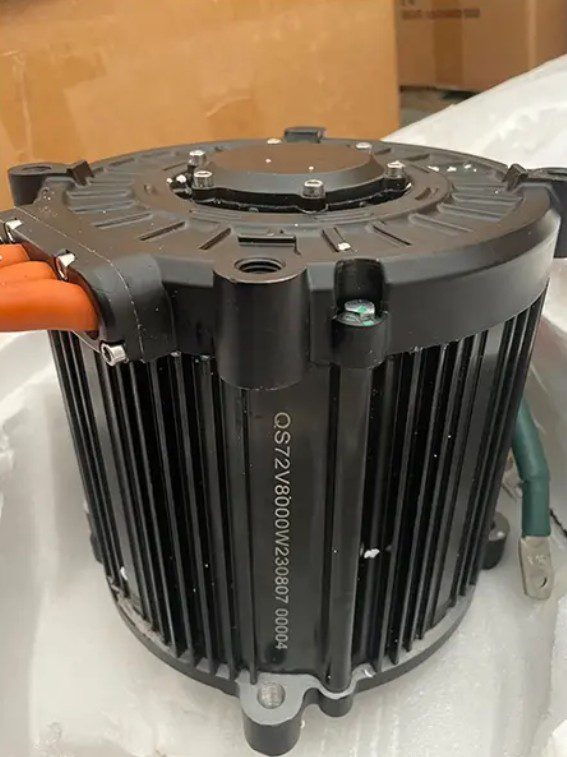

QSD180A-90 8kW / 20kW

Description

High power mid-drive PMSM motor, capable of 8kW constant power and peaks of over 20kW; with inner rotor for high speed motorcycles, go-karts, ATVs and off-road vehicles, by QS Motor.

Type: PMSM (Inner Rotor)
Operation: Encoder

Rated Nominal Operating Voltage: 72V
Recommended Voltage Range: 64V – 84V

Shaft: Spline

Lowest Recommended Nominal Voltage: 48V
Highest Recommended Nominal Voltage: 110V

Rated Nominal Power: 8000W
Recommended Nominal Current: 112A Continuous
Rated Peak Power: 20000W
Recommended Peak Current: 278A Burst (potential peak current based on duration and frequency)

Rated Speed: 4300 RPM
Peak Speed: 6000 RPM
Rated Torque: 14.3 Nm
Peak Torque: 100.0 Nm

Core Diameter: 180mm
Magnet Height: 90mm
Pole Pairs: 4
Winding Configuration: Y
Thermic Probe: PTC1000

Operating Temperature: 70°C – 120°C (Peak 150°C)
Waterproof Grade: IP67
Phase Wire: 30mm² (excluding insulation)

Weight: 21.6 kg
Colour: Black
Cooling: Surface Air Cooling

Phase Cable Length: 800 +/- 20mm
Signal Cable Length: 700 +/- 20mm
Phase Connector: M8 Lug Terminal

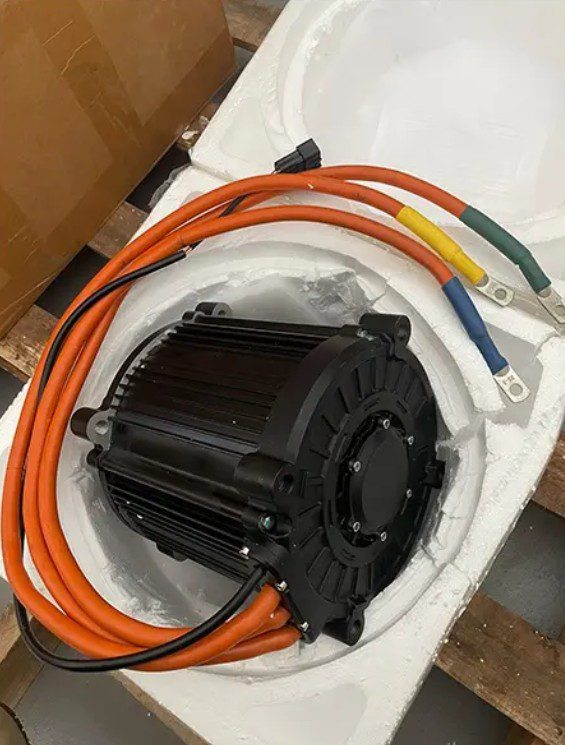

Wiring Definition:
U/A Phase: Yellow
V/B Phase: Green
W/C Phase: Blue

Signal Connector Pinout:

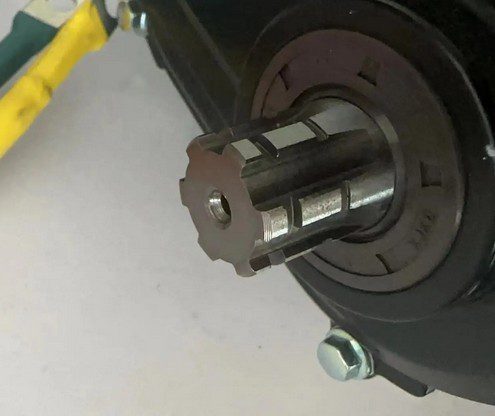

Shaft:

Transmission: As standard delivered without pulley or sprocket : available upon request

Compatible Sprocket: 13T 520 Sprocket 20/17mm : 6-5mm Spline

Connection: Phase + Signal cable length and connectors can be modified upon request
Warranty: 2 Years

Manufactured in China
Shipped from Germany
